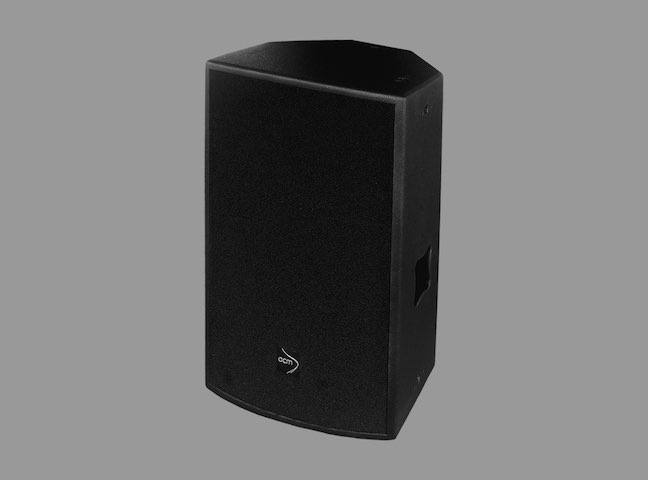

SRL10

Technical Specification

Frequency Range (-10dB)

65Hz - 20KHz

Frequency Response (-3dB)

75Hz - 20KHz

Rec. Hipass Frequency

50Hz

Axial Sensitivity

96dB (1w/1m)

Max Calculated SPL

126dB

Horizontal Coverage

80°

Vertical Coverage

60°

Rated System Power

250W continuous 1000W peak

LF Transducer

10" / 65 mm.

HF Transducer

1" / 45 mm.

Crossover Frequency

2.1KHz

Nominal Impedance

8Ω

Connector

2 x NL4 speakon

Dimensions [HxWxD]

536 x 315 x 315 mm.

Net Weight

17 kg.

Shipping Weight

19 kg.
