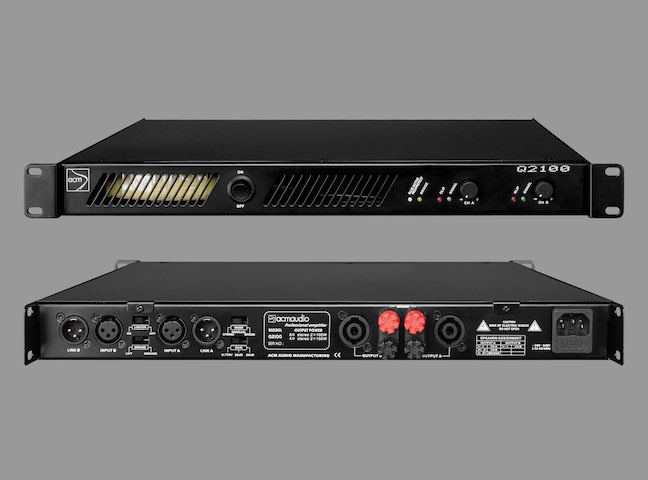

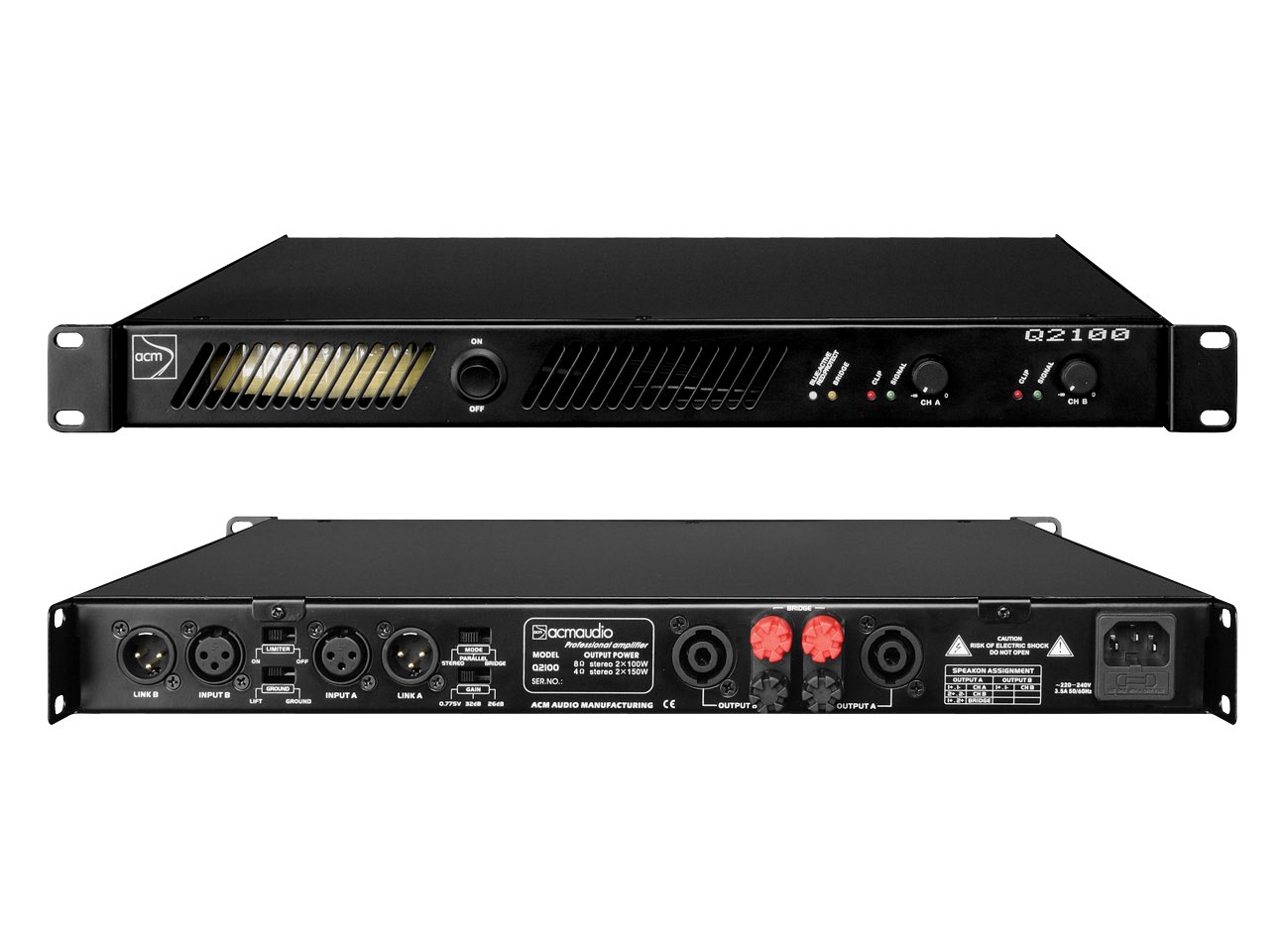

| Q2100
|
 |
 |
 |
| |
|
| Technical Specification |
| Rated Power Bridge Mode 8Ω |
300 Watts @ 1KHz at < 0.1% T.H.D. |
| Rated Power (2 x 4Ω) |
150 Watts per channel @ 1KHz at < 0.1% T.H.D. both channels driven |
| Rated Power (2 x 8Ω) |
100 Watts per channel @ 1KHz at < 0.1% T.H.D. both channels driven |
| Input CMRR |
> -65dB @ 1KHz |
| Power Bandwidth |
10Hz - 30KHz ; 0, -0.5dB at rated 80 Watts 8Ω power |
| T.H.D. (2 x 4Ω) |
< 0.05% @ 100 Watts per channel from 20Hz - 20KHz |
| T.H.D. (2 x 8Ω) |
< 0.05% @ 100 Watts per channel from 20Hz - 20KHz |
| Rated Power (1 x 4Ω) |
180 Watts @ 1KHz at < 0.1% T.H.D. |
| Rated Power (1 x 8Ω) |
130 Watts @ 1KHz at < 0.1% T.H.D. |
| Minimum Load Impedance |
4Ω |
| Maximum RMS Voltage Swing |
37 Volt |
| Frequency Response |
10Hz - 100KHz ; +0, -3dB at 1 Watt |
| Phase Response |
+5 to -15 from 20Hz to 20KHz |
| Input Impedance |
10KΩ balanced |
| Cooling |
Two temperature dependant variable speed 40 mm. high output DC fans |
| Controls |
Two front panel attenuators, rear panel mode switch and gain select switch |
| Voltage Gain |
0.775V, 32dB or 26dB |
| Crosstalk |
> -60dB @ 1KHz at rated power @ 8Ω |
| Hum and Noise |
> -106dB, "A" weighted referenced to rated power @ 8Ω |
| Slew Rate |
> 22V/us |
| Dampling Factor (8Ω) |
> 400:1 @ 20Hz - 1KHz |
| Indicator LEDs |
2 clip, 2 signal presence, 1 bridge, 1 active status/protection |
| Protection |
Thermal, DC, turn-on bursts, incorrect loads |
| Connectors |
XLR, speakon and binding post speaker output |
| Construction |
16 ga. stell |
| Dimensions [HxWxD] |
44 x 483 x 350 mm. |
| Net Weight |
8 kg. |
| Gross Weight |
9 kg. |
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
