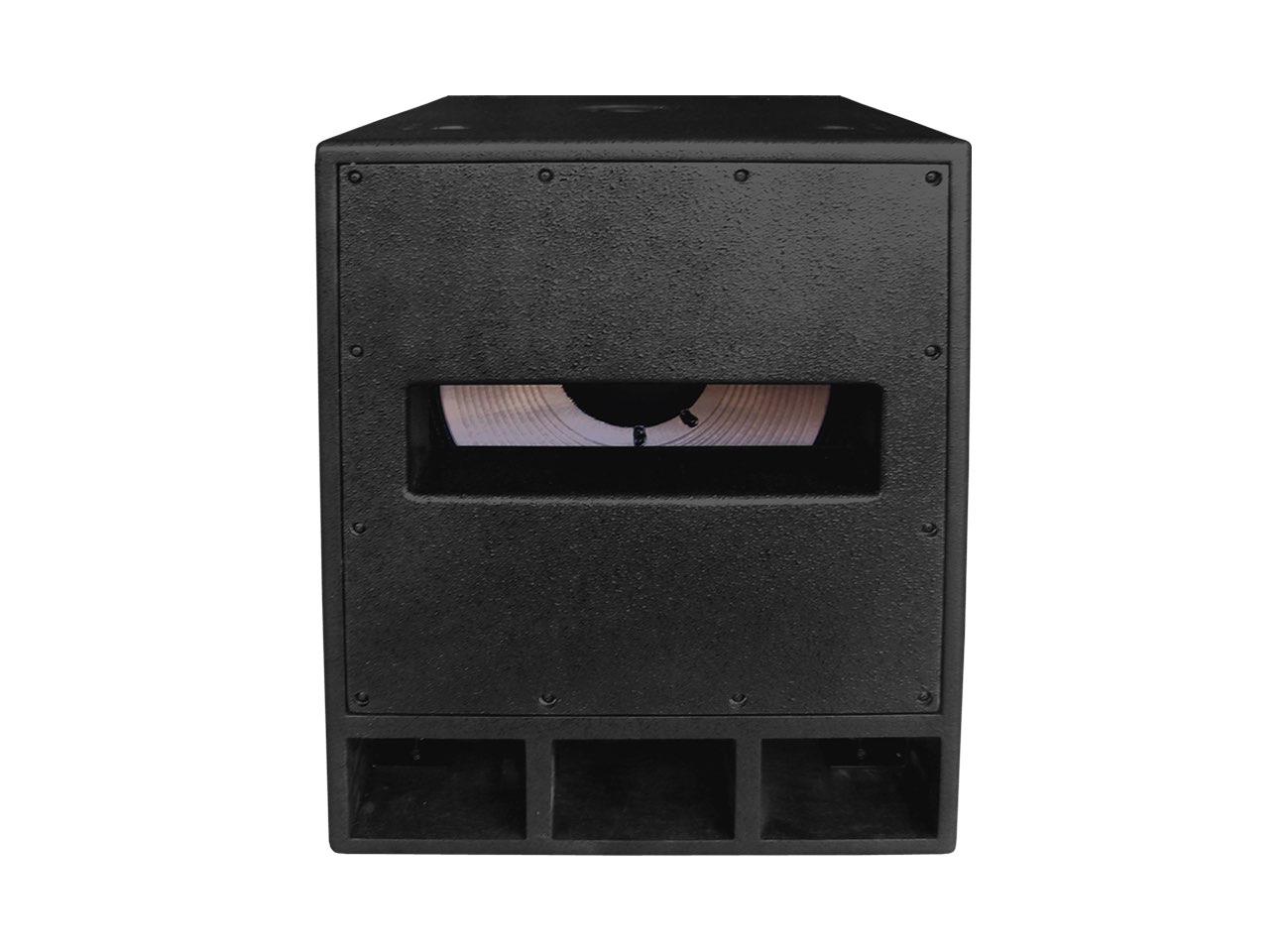

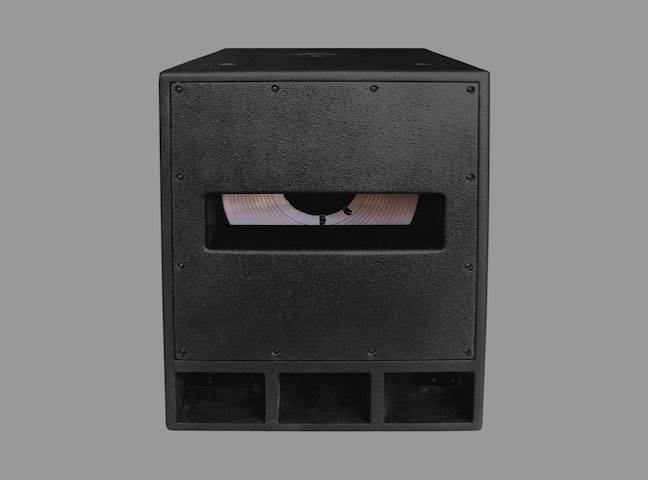

| PS3-800 (Subwoofer) |
 |
 |
 |
| |
|
| Technical Specification |
| Frequency Response +/-3dB |
42Hz - 80Hz to 200Hz |
| Axial Sensitivity 1w@1m |
95dB |
| Maximum SPL @1m |
124dB |
| Subwoofer Amplifier |
1 x 450W RMS / Class AB |
| Sat & Mid/High Unit Amplifier |
2 x 150W RMS / Class AB |
| Connections |
2 x XLR I/P, 2 x XLR O/P |
| |
2 x Speakon satellite O/P |
| Subwoofer |
1 x 12" |
| Operating Temperature Range |
-10°C to 55°C (14°F to 131°F) |
| Dimensions [HxWxD] |
480 x 400 x 590 mm. |
| Weight |
40 kg. |
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
