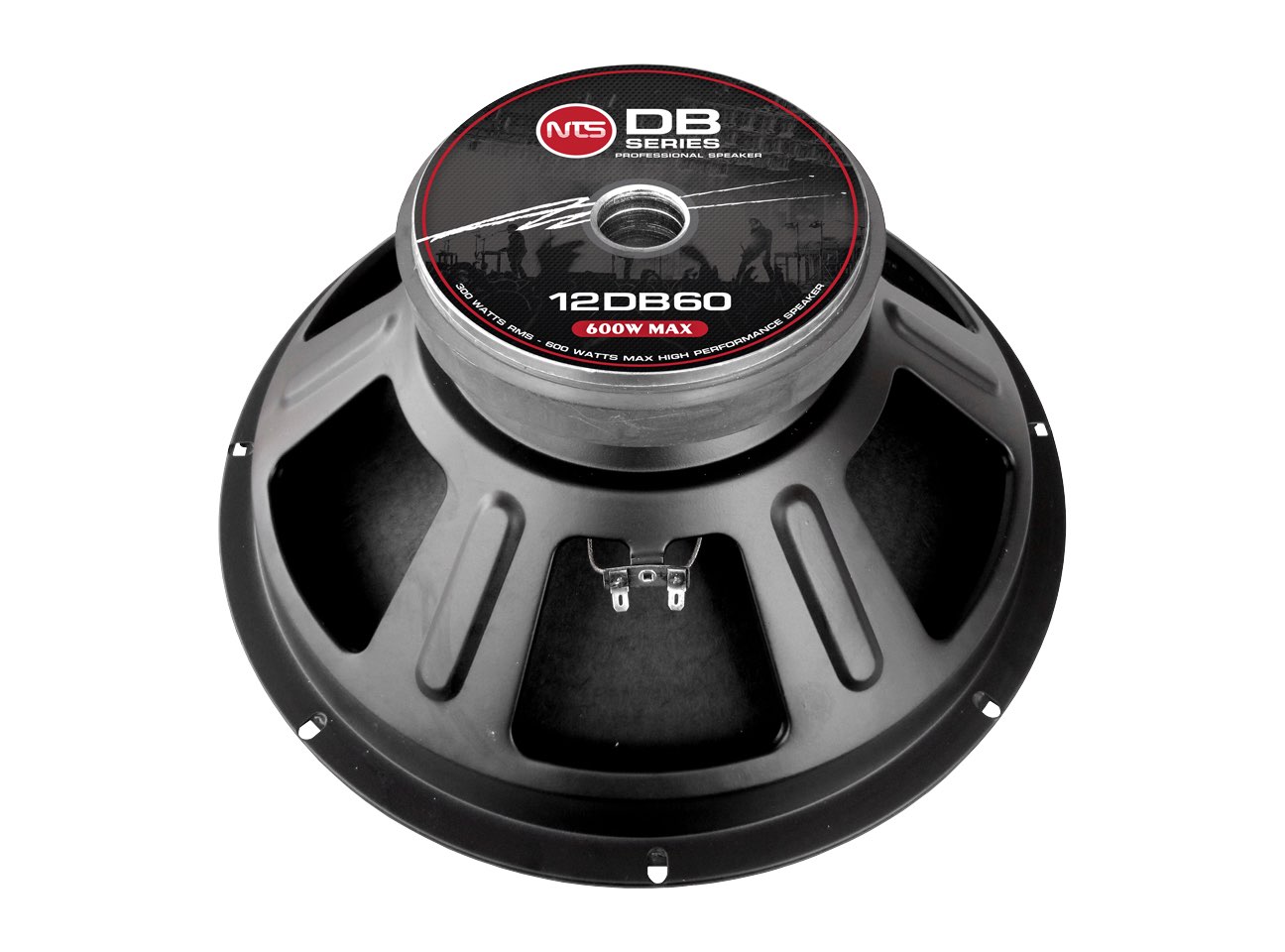

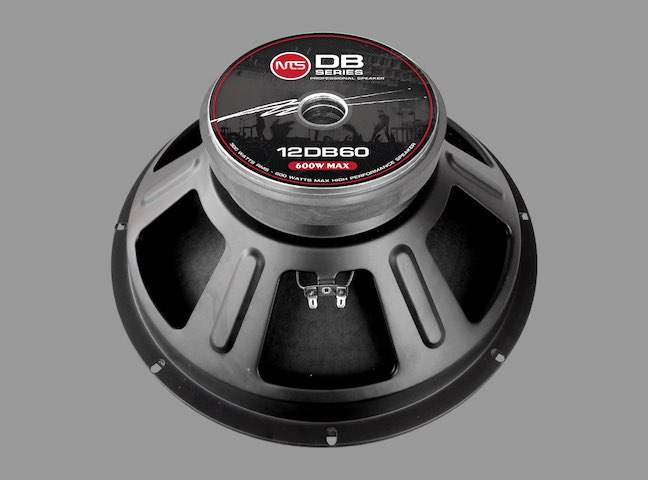

| 12DB60 |
 |
 |
| |
|
| Technical Specification |
| Nominal Diameter |
12" |
| Nominal Impedance |
8Ω |
| Nominal Power Handling |
300W |
| Power Handling |
600W |
| Sensitivity (1w/1m) |
94 +/- 2dB |
| Frequency Range |
45Hz - 3.5KHz |
| Voice Coil Type |
Kapton bobbin |
| Voice Coil Diameter |
60.6 mm. |
| Basket |
Steel |
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
