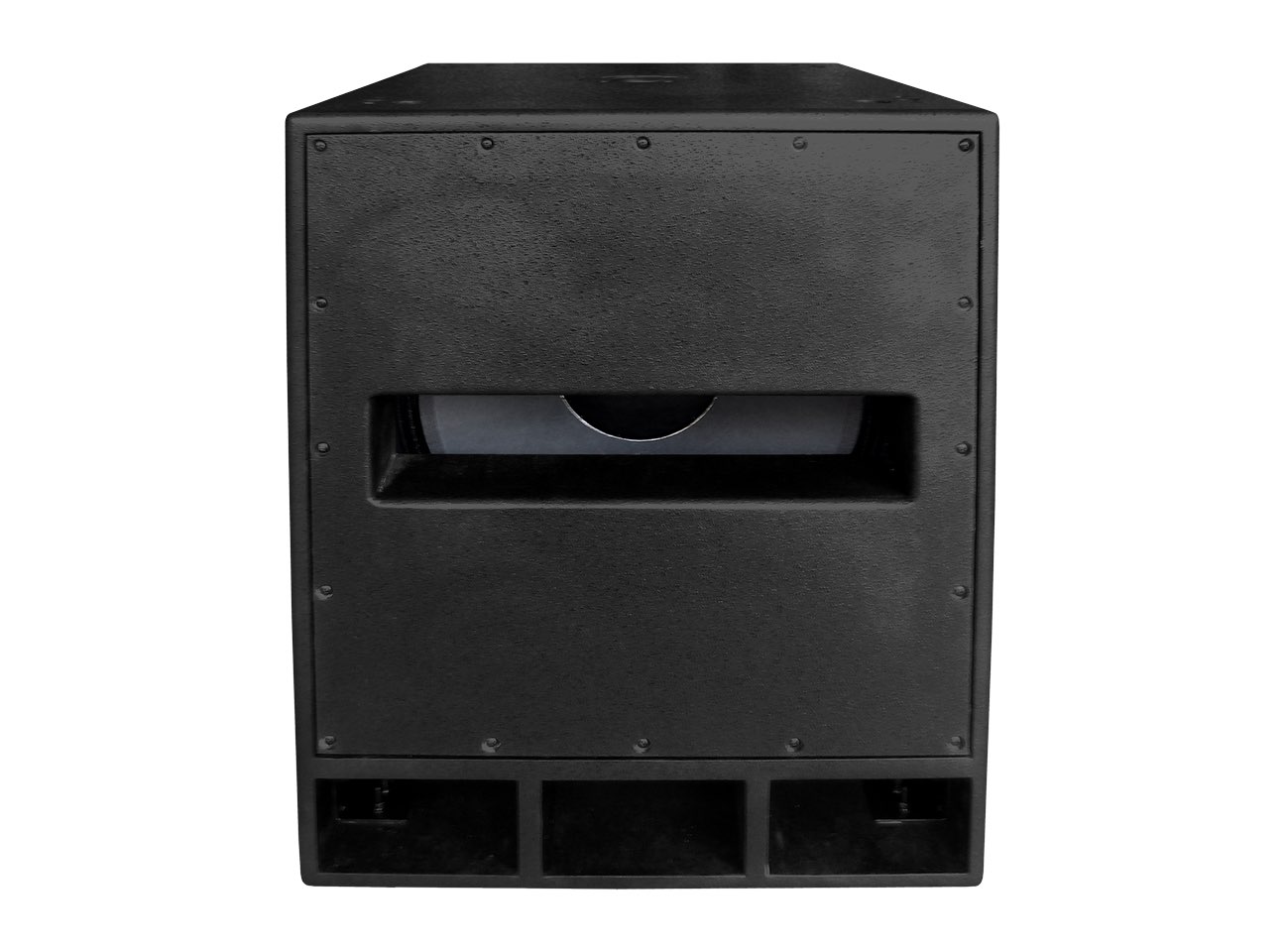

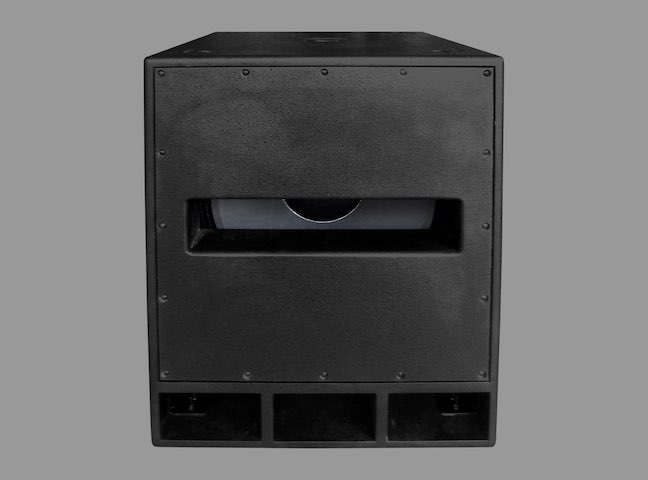

| SRP118SE |
 |
 |
 |
| |
|
| Technical Specification |
| Frequency Range (-10dB) |
40Hz - 220Hz |
| Frequency Response (-3dB) |
48Hz - 200Hz |
| Max Calculated SPL |
130dB |
| Amplifier Power |
600W |
| LF Transducer |
18" / 100 mm. |
| Crossover Frequency |
80Hz - 200Hz (adjustable) |
| Connector |
Line XLR/RCA |
| Output Connector |
Pre output XLR |
| Input Impedance |
20KΩ balanced / 47KΩ unbalanced |
| AC Input |
AC 115V/230V 50Hz/60Hz |
| Dimensions [HxWxD] |
535 x 645 x 680 mm. |
| Net Weight |
56 kg. |
| Shipping Weight |
59 kg. |
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
