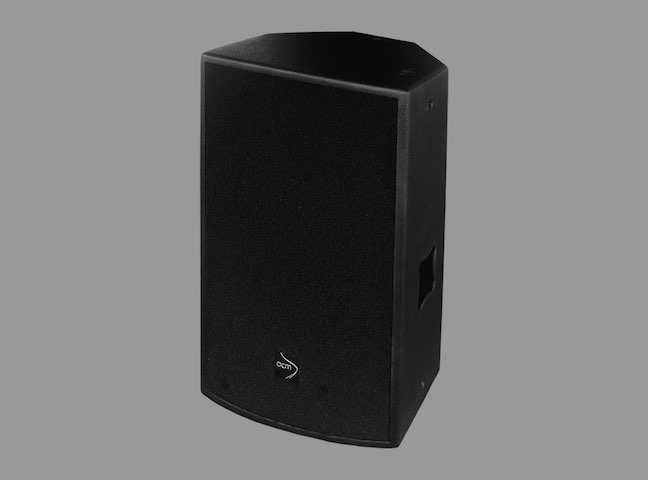

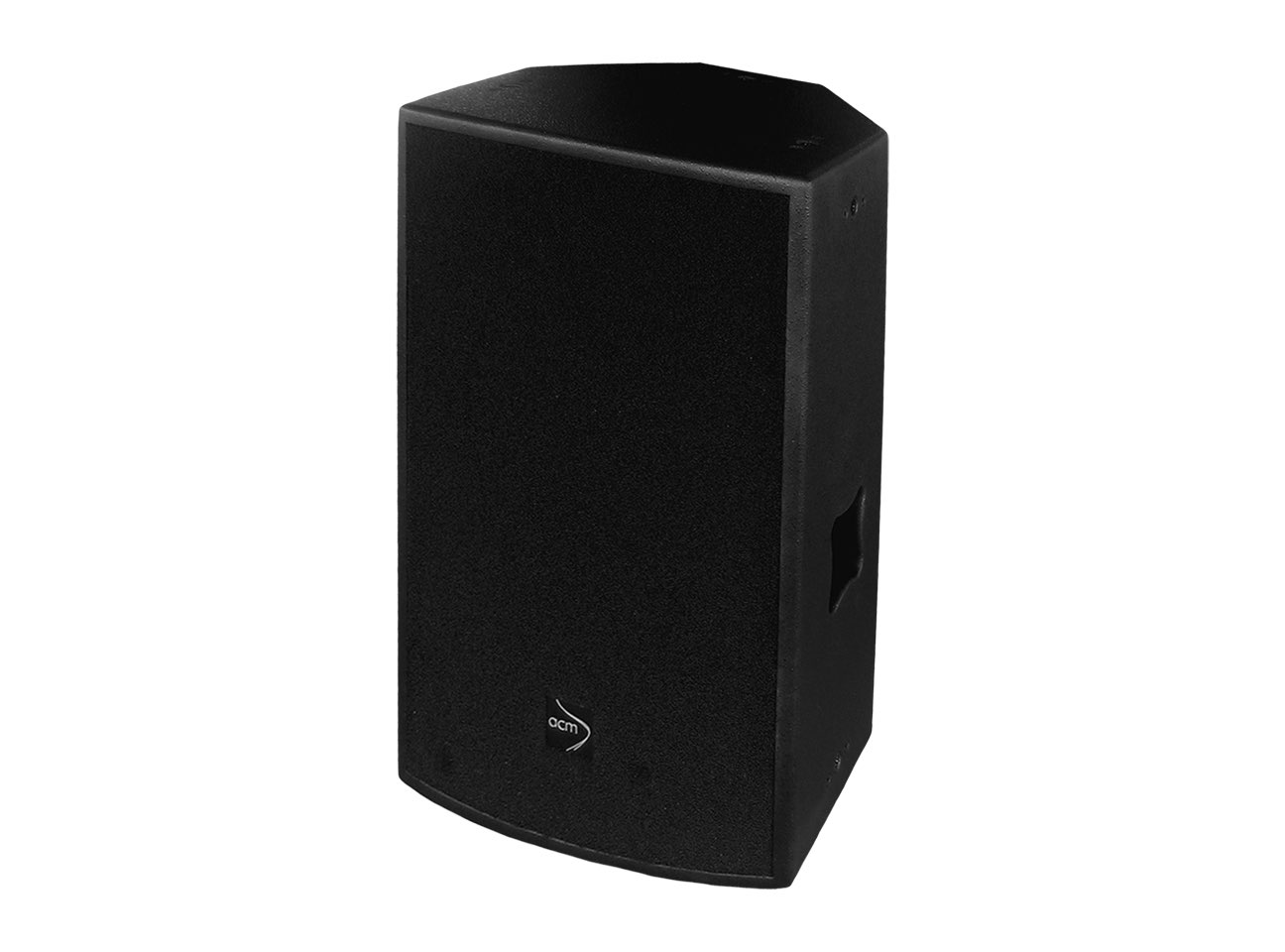

SRL12

Technical Specification

Frequency Range (-10dB)

50Hz - 20KHz

Frequency Response (-3dB)

60Hz - 20KHz

Rec. Hipass Frequency

25Hz

Axial Sensitivity

97dB (1w/1m)

Max Calculated SPL

128dB

Horizontal Coverage

90°

Vertical Coverage

60°

Rated System Power

300W continuous 1200W peak

LF Transducer

12" / 75 mm.

HF Transducer

1" / 45 mm.

Crossover Frequency

2KHz

Nominal Impedance

8Ω

Connector

2 x NL4 speakon

Dimensions [HxWxD]

656 x 405 x 415 mm.

Net Weight

30 kg.

Shipping Weight

32 kg.
