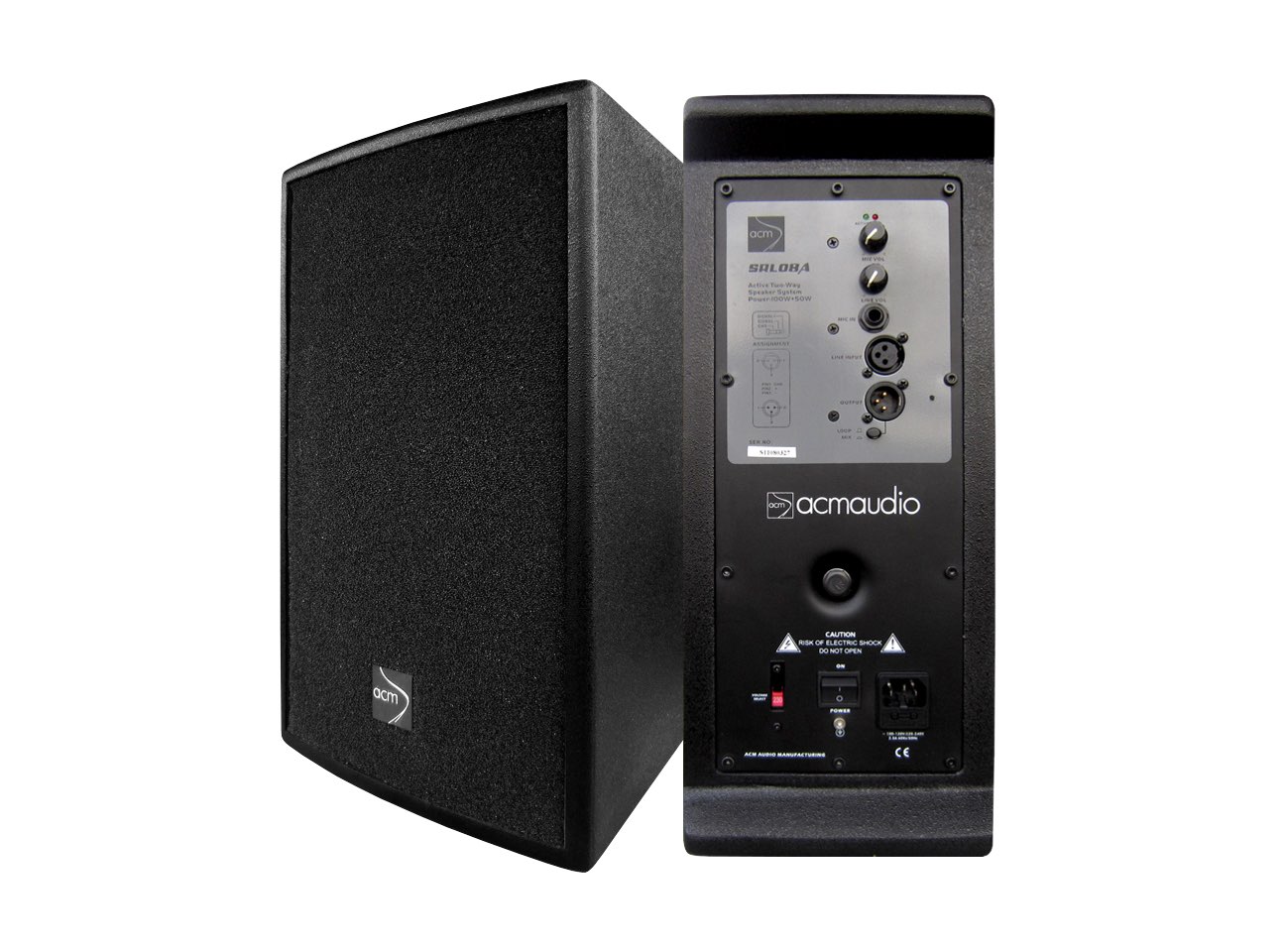

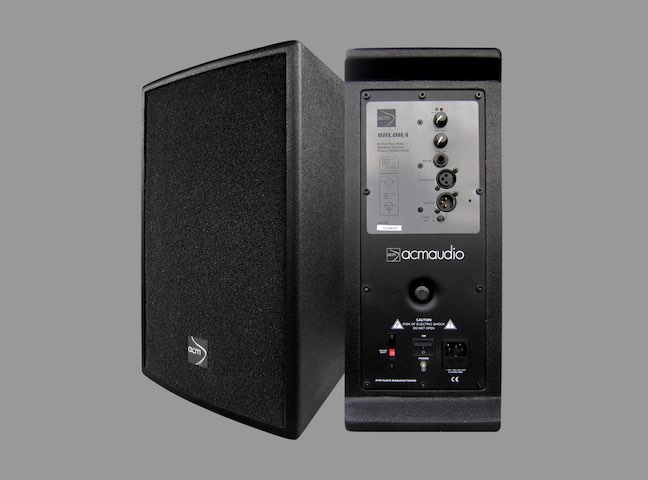

| SRL08A |
 |
 |
| |
|
| Technical Specification |
| Frequency Range (-10dB) |
65Hz - 20KHz |
| Frequency Response (-3dB) |
75Hz - 20KHz |
| Rec. Hipass Frequency |
50Hz |
| Max Calculated SPL |
117dB |
| Horizontal Coverage |
90° |
| Vertical Coverage |
60° |
| Amplifier Power LF |
100W |
| Amplifier Power HF |
50W |
| LF Transducer |
8" / 50 mm. |
| HF Transducer |
1" / 34 mm. |
| Crossover Frequency |
3.5KHz |
| Input Connector |
XLR (line input) & 1/4" phone jack (mic input) |
| Output Connector |
XLR |
| Input Impedance |
Balanced 20KΩ, unbalanced 10KΩ |
| AC Input |
110/220 VAC, 50/60 Hz, 150 watts |
| Dimensions [HxWxD] |
430 x 270 x 293 mm. |
| Net Weight |
12 kg. |
| Shipping Weight |
14 kg. |
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
