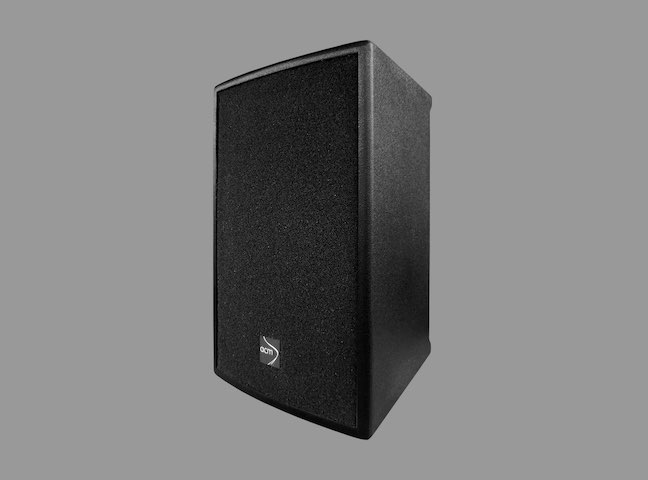

SRL08

Technical Specification

Frequency Range (-10dB)

70Hz - 20KHz

Frequency Response (-3dB)

75Hz - 20KHz

Rec. Hipass Frequency

60Hz

Axial Sensitivity

94dB (1w/1m)

Max Calculated SPL

121dB

Horizontal Coverage

90°

Vertical Coverage

60°

Rated System Power

120W continuous 480W peak

LF Transducer

8" / 50 mm.

HF Transducer

1" / 34 mm.

Crossover Frequency

3KHz

Nominal Impedance

8Ω

Connector

2 x NL4 speakon

Dimensions [HxWxD]

430 x 270 x 275 mm.

Net Weight

10 kg.

Shipping Weight

12 kg.
