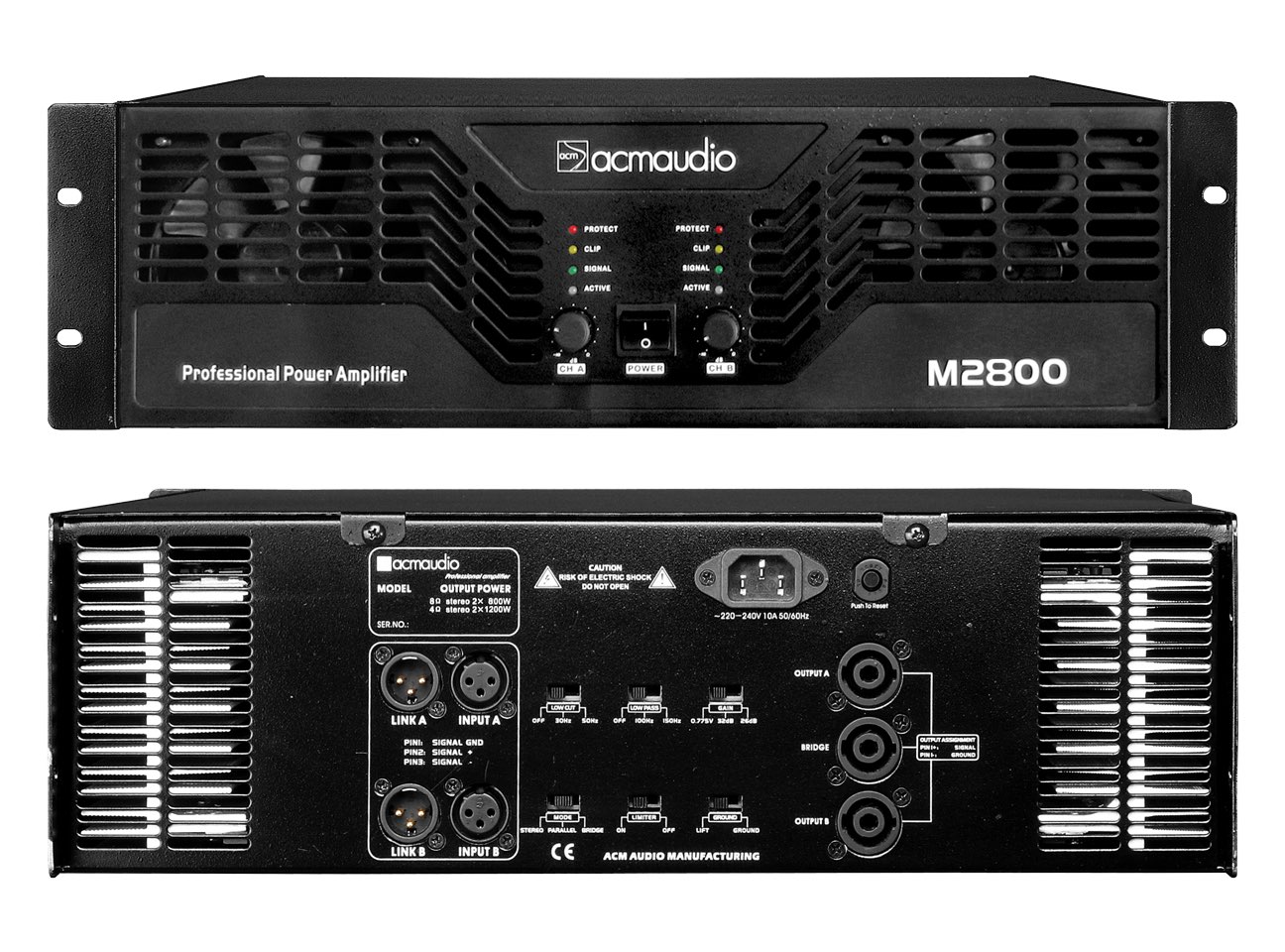

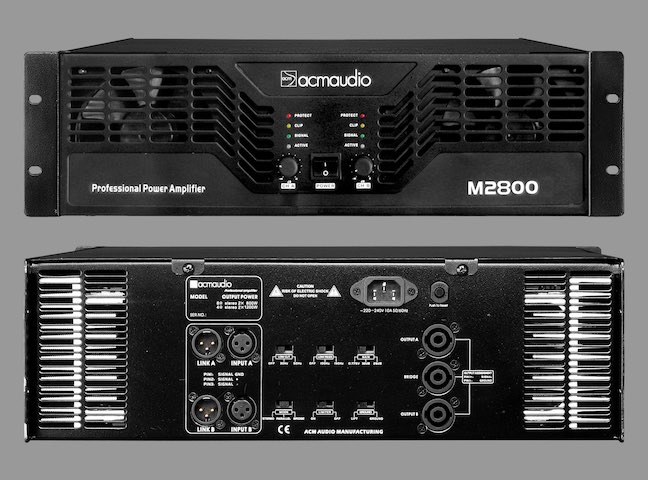

| M2800 |
 |
 |
 |
| |
|
| Technical Specification |
| Rated Power Bridge Mode 8Ω |
2400 Watts @ 1KHz at < 0.5% T.H.D. |
| Rated Power (2 x 4Ω) |
1200 Watts per channel @ 1KHz at < 0.5% T.H.D. both channels driven |
| Rated Power (2 x 8Ω) |
800 Watts per channel @ 1KHz at < 0.5% T.H.D. both channels driven |
| Input CMRR |
> -65dB @ 1KHz |
| Power Bandwidth |
20Hz - 20KHz ; 0, -0.5dB at rated 200 Watts 8Ω power |
| T.H.D. (2 x 4Ω) |
< 0.05% @ 600 Watts per channel from 20Hz - 20KHz |
| T.H.D. (2 x 8Ω) |
< 0.05% @ 400 Watts per channel from 20Hz - 20KHz |
| Rated Power (1 x 4Ω) |
1300 Watts @ 1KHz at < 0.5% T.H.D. |
| Rated Power (1 x 8Ω) |
860 Watts @ 1KHz at < 0.5% T.H.D. |
| Minimum Load Impedance |
2Ω |
| Maximum RMS Voltage Swing |
93 Volt |
| Frequency Response |
10Hz - 50KHz ; +0, -3dB at 1 Watt |
| Phase Response |
+20° to -25° from 20Hz to 20KHz |
| Input Impedance |
20KΩ balanced / 10KΩ unbalanced |
| Cooling |
Two temperature dependant variable speed 120 mm. high output DC fans |
| Controls |
Two front panel attenuators, rear panel mode switch and gain select switch |
| Voltage Gain |
0.775V, 32dB or 26dB |
| Crosstalk |
> -60dB @ 1KHz at rated power @ 8Ω |
| Hum and Noise |
> -104dB, "A" weighted referenced to rated power @ 8Ω |
| Slew Rate |
> 25V/us |
| Dampling Factor (8Ω) |
> 800:1 @ 20Hz - 1KHz |
| Indicator LEDs |
2 clip, 2 signal presence, 2 active status, 2 protection |
| Protection |
Thermal, DC, turn-on bursts, incorrect loads |
| Connectors |
XLR, speakon and binding post speaker output |
| Construction |
16 ga. stell |
| Dimensions [HxWxD] |
132 x 483 x 498 mm. |
| Net Weight |
32 kg. |
| Gross Weight |
35 kg. |
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
