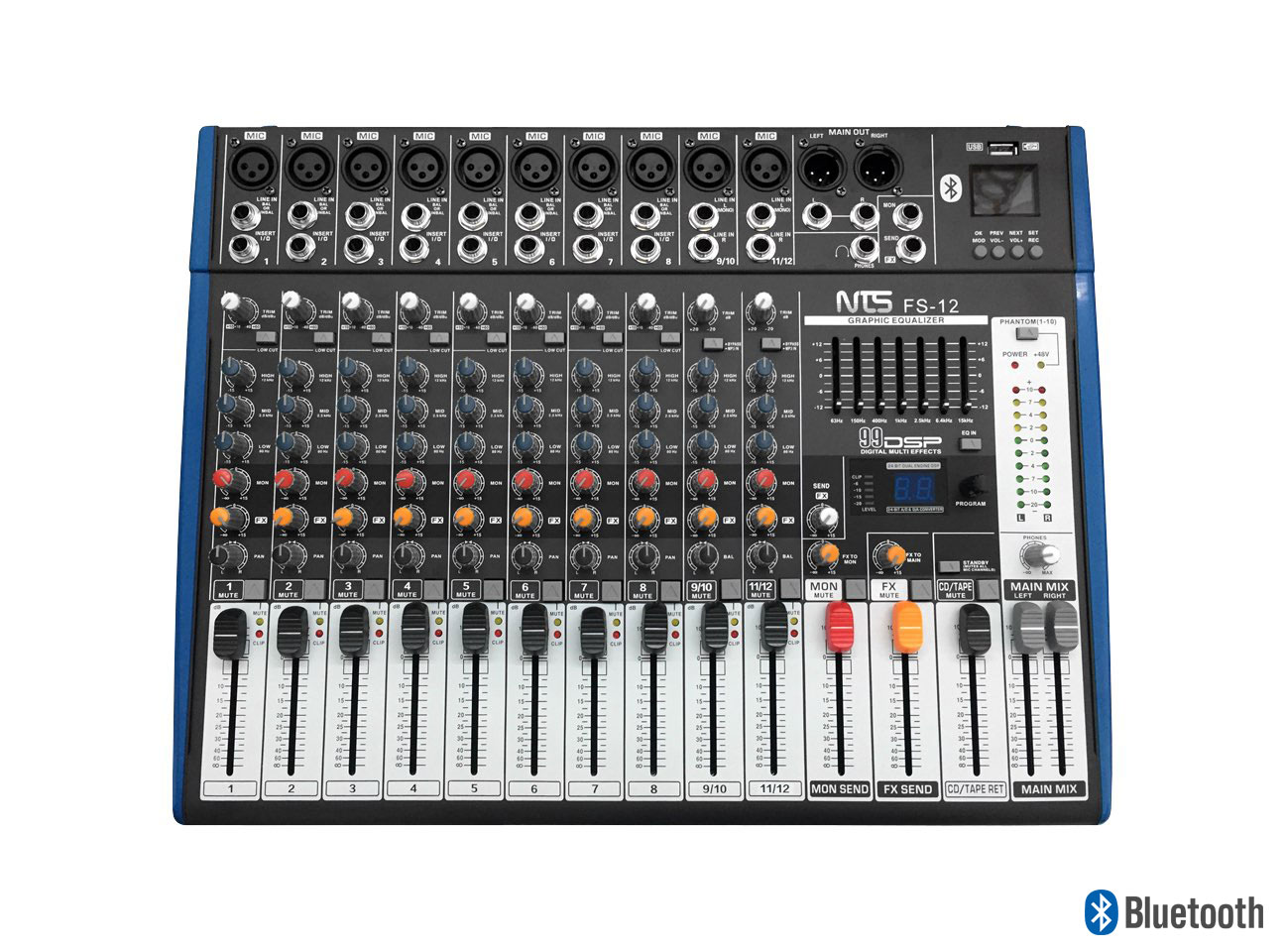

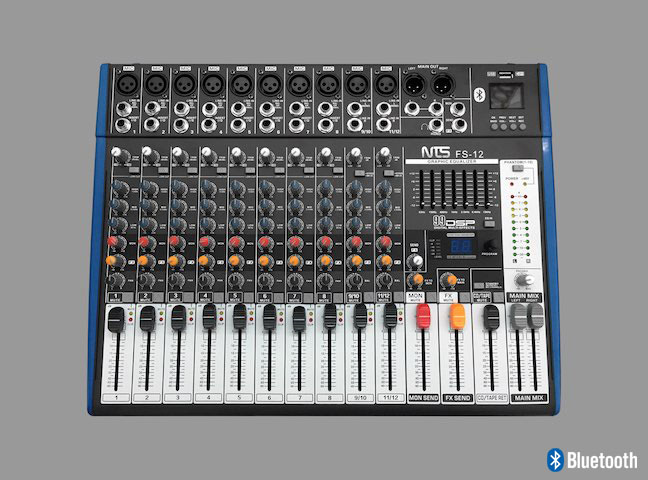

| FS-12 |
 |
 |
 |
| |
|
| Main Feature |
| - 12 channel mixer (8 mono input and 2 stereo input) |
| - Insert point on all input |
| - 3 band EQ on all input |
| - 1 Aux send for external effects and monitoring |
| - Peak LED on all input |
| - LOW CUT switch on mono input |
| - MUTE switch on all input |
| - Built in 99 program digital effect |
| - USB interface for MP3 input and playback with digital display |
| - BLUETOOTH function |
| - 7 band graphic EQ |
| - +48V phantom power supply |
| Technical Specification |
| Total Harmonic Distortion |
0.01% |
| Frequency Response |
10Hz - 60KHz, +/-3dB |
| S/N Ratio |
112dB |
| Max Output |
22dBu balanced |
| Aux Send Max Output |
22dBu unbalanced |
| Control Room Output |
22dBu unbalanced |
| Equalization : High |
+/-15dB, 12KHz |
| : Mid |
+/-15dB, 2.5KHz |
| : Low |
+/-15dB, 80Hz |
| Power Requirement |
AC 220V/50Hz |
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
