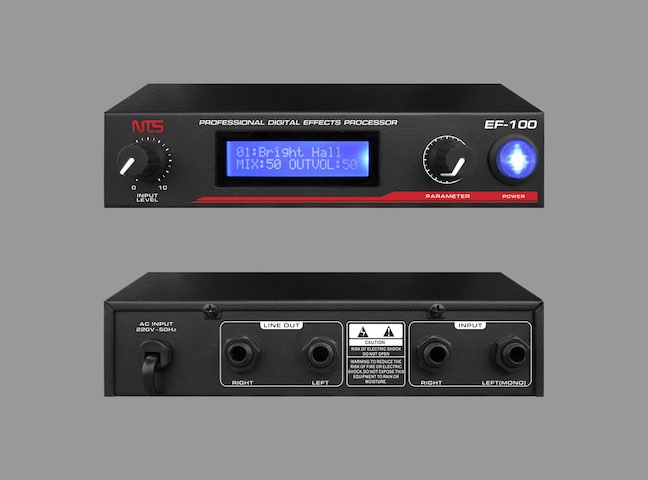

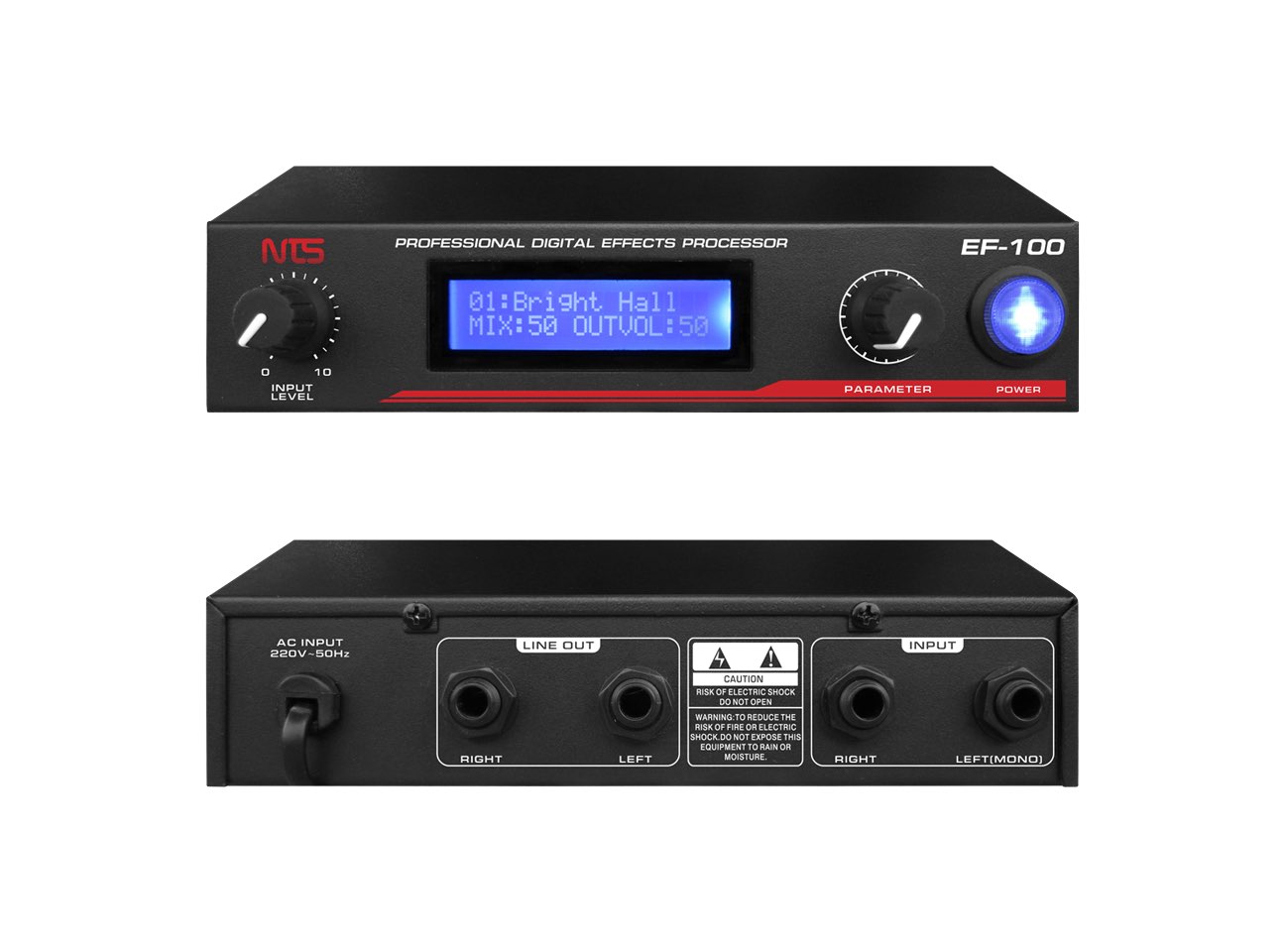

EF-100

Main Feature

- 16 mode digital effect

- LCD display

- Input with level adjust

- Output with level adjust

- Effect with mix adjust

Technical Specification

Signal to Noise

93dB

THD+Noise

< 0.03%

Frequency Response

20Hz - 30KHz, +/-3dB

Input Sensitivity / Impedance

0-630mV / 2KΩ

Line Output / Impedance

0-9.5V / 1KΩ

Power Supply Voltage

220V AC, 50Hz

Power Consumption

5W

Dimensions [WxDxH]

200 x 115 x 44 mm.
