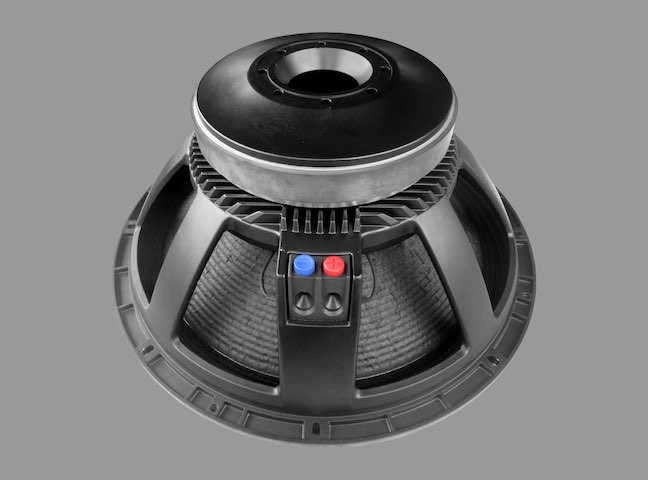

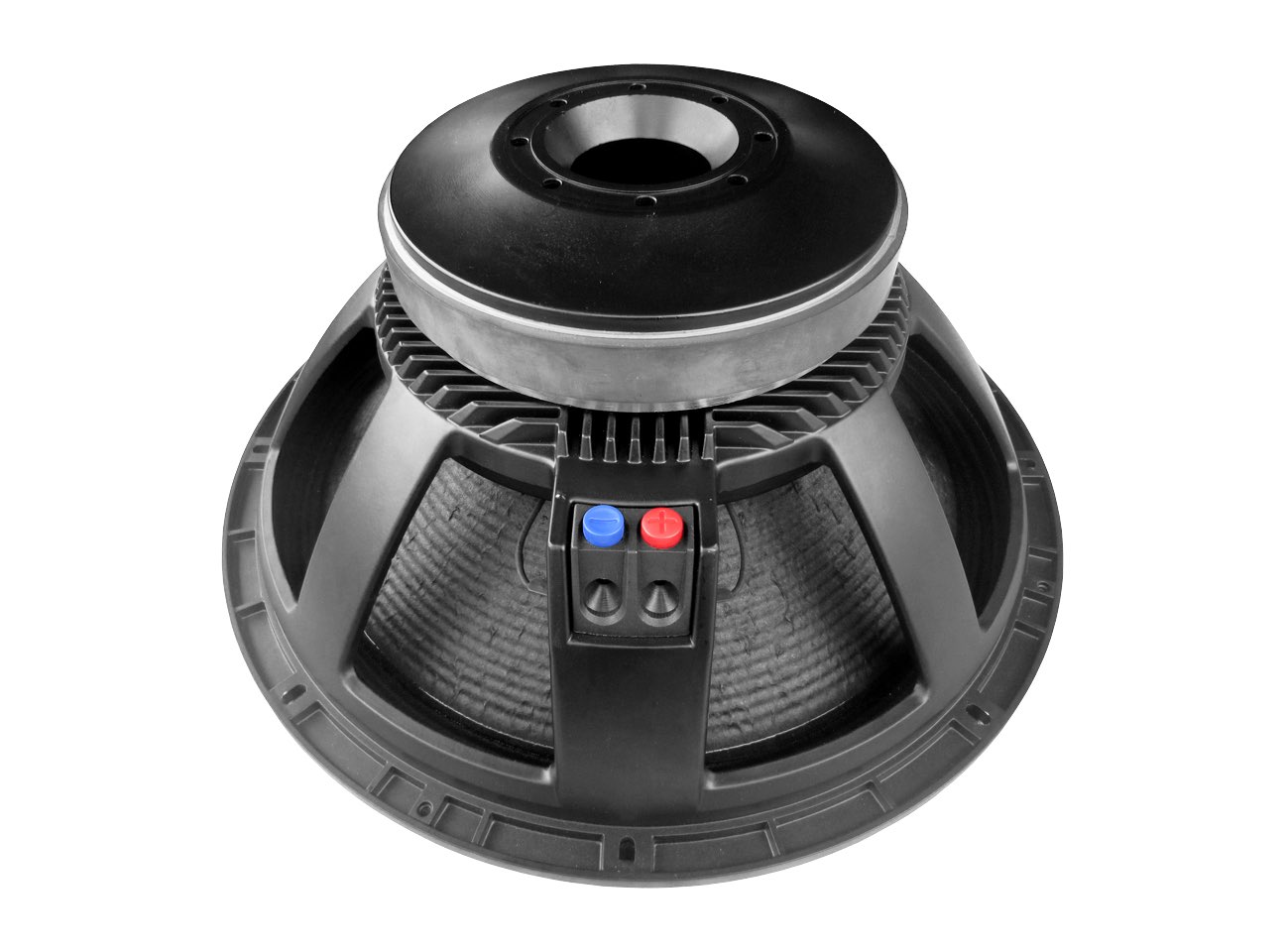

| CHAMP-18 |
 |
 |
| |
|
| Technical Specification |
| Nominal Diameter |
18" |
| Nominal Impedance |
8Ω |
| Nominal Power Handling |
800W |
| Power Handling |
1600W |
| Sensitivity (1w/1m) |
97 +/- 2dB |
| Frequency Range |
35Hz - 2KHz |
| Voice Coil Type |
Kapton bobbin |
| Voice Coil Diameter |
100 mm. |
| Basket |
Cast aluminium |
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
