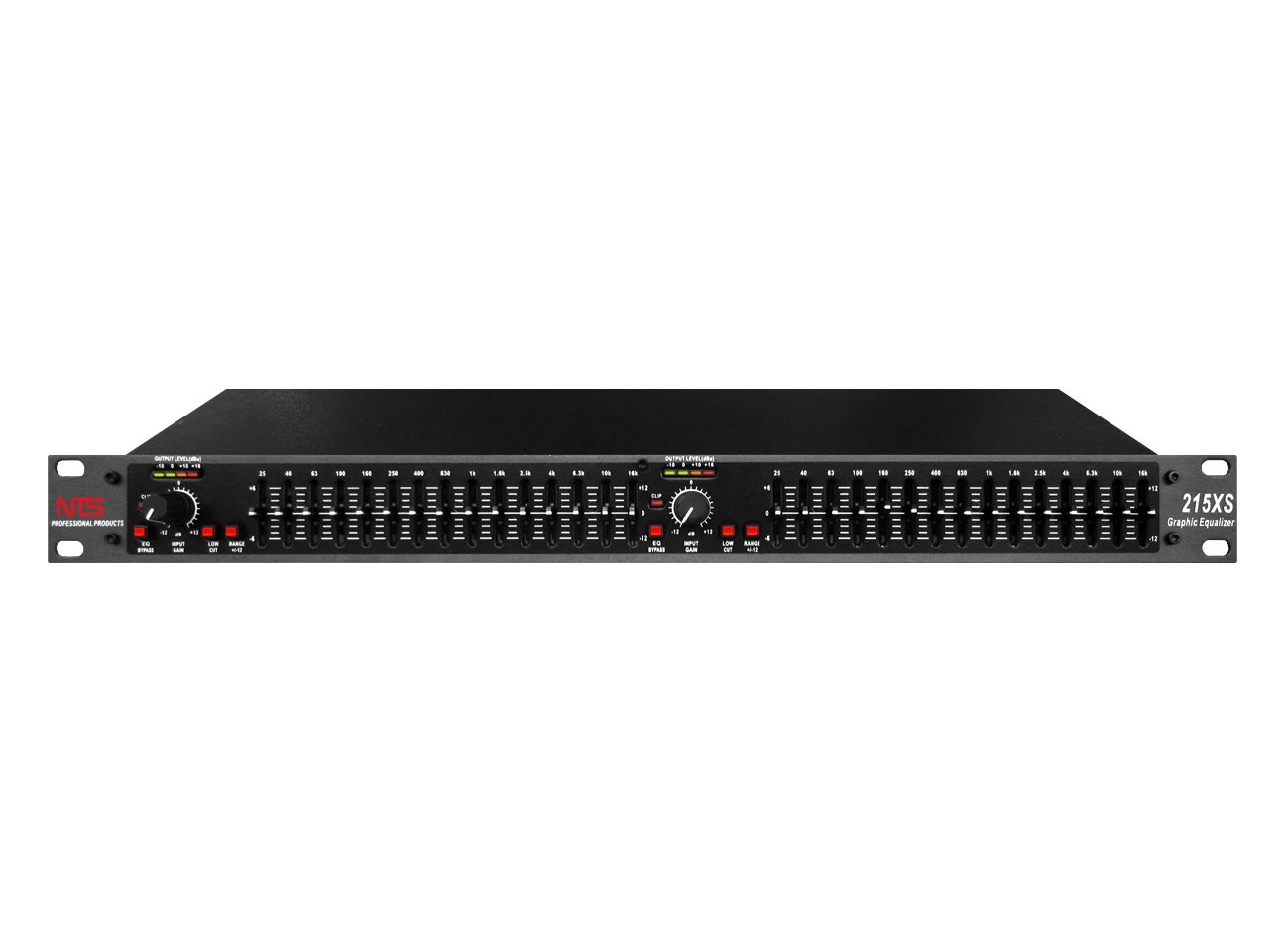

| 215XS |
 |
 |
| |
|
| Main Feature |
| - Switchable range between +/-6dB and +/-12dB |
| - Balanced input and output |
| - XLR and 1/4" TRS connector |
| - Input gain range -12dB/+12dB |
| - 12dB/octave 50Hz low cut filter |
| - Front panel bypass switch |
| Input |
| Connector |
1/4" TRS, female XLR (pin 2 hot) |
| Type |
Electronically balanced/unbalanced, RF filtered |
| Impedance |
Balanced 40KΩ, unbalanced 20KΩ |
| Max Input Level |
> +21dBu balanced or unbalanced |
| CMRR |
> 40dB, typically > 55dB at 1KHz |
| Output |
| Connector |
1/4" TRS, male XLR (pin 2 hot) |
| Type |
Impedance balanced/unbalanced, RF filtered |
| Impedance |
Balanced 100Ω, unbalanced 50Ω |
| Max Output Level |
> +21dBu balanced/unbalanced into 2KΩ or greater |
| |
> +18dBm balanced/unbalanced (into 600Ω) |
| System Performance |
| Bandwidth |
20Hz to 20KHz, +0.5/-1dB |
| Frequency Response |
< 10Hz to > 50KHz, +0.5/-3dB |
| Dynamic Range |
108dB |
| Signal to Noise |
90dB |
| THD+Noise |
< 0.004% |
| Interchannel Crosstalk |
< -80dB, 20Hz to 20KHz |
| Function Switch |
| EQ Bypass |
Bypass the graphic equalizer section in the signal path |
| Low Cut (recessed) |
Activate the 50Hz 12dB/octave high pass filter |
| Range (recessed) |
Select either +/-6dB or +/-12dB slider boost/cut range |
| Power Supply |
| Operating Voltage |
230VAC 50/60Hz |
| Power Consumption |
12 Watts |
| Main Connection |
IEC receptacle |
| Physical |
| Dimension [HxWxD] |
1.75" x 19" x 6" (4.4 x 48.3 x 17.5 cm.) |
| Weight |
4.7 lbs. |
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
