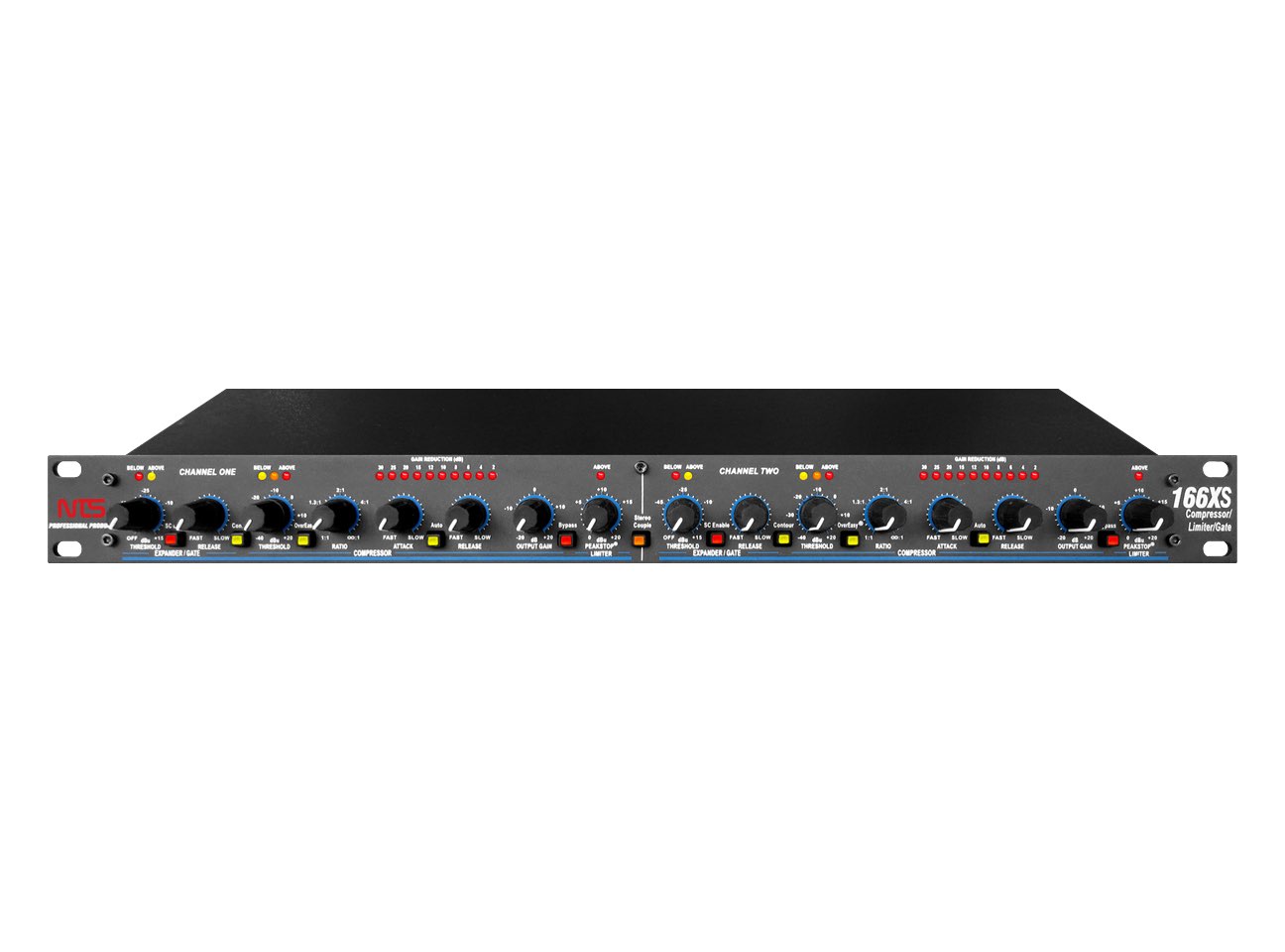

| 166XS |
 |
 |
| |
|
| Main Feature |
| - Goof proof operation to smooth uneven levels, add sustain to guitars, fatten drums or tighten up mixes |
| - New gate timing algorithms ensure the smoothest release characteristics |
| - Program-adaptive expander/gates |
| - Great sounding dynamics control for any type of program material |
| - Separate precision LED displays for gain reduction, compression threshold and gate threshold allow quick, |
| accurate setup |
| - Stereo or dual-mono operation |
| - Balanced inputs and outputs on 1/4" TRS and XLR |
| - Side chain insert |
| - Classic auto mode |
| Input |
| Connector |
1/4" TRS phone and XLR |
| Impedance |
> 50KΩ balanced, > 25KΩ unbalanced |
| Maximum Level |
+24dBu, balanced or unbalanced |
| CMRR |
> 40dBu at 1KHz, typically > 55dB |
| Side Chain Insert |
| Connector |
1/4" TRS phone |
| Impedance |
Tip = > 10KΩ (input) |
| |
Ring = 2KΩ (output) |
| Maximum Level |
+24dBu |
| Output |
| Connector |
1/4" TRS and XLR |
| Impedance |
120Ω balanced, 60Ω unbalanced |
| Maximum Level |
+21dBu, > +20dBm into 600Ω, balanced or unbalanced |
| Frequency Response |
20Hz - 20KHz ; +0, -0.5dB, typical 3dB points are 0.35Hz and 110KHz, unity gain |
| Noise |
< -90dBu, 22Hz to 22KHz, no weighting, unity gain |
| THD+N |
Typically < 0.04% ; any amount of compression up to 40dB @ 1KHz |
| |
Typically < 0.08% @ +10dBu (15dB gain reduction) |
| Compressor |
| Threshold Range |
-40dBu to +20dBu |
| Thresohold Characteristic |
Selectable OverEasy or Hard Knee |
| Compression Ratio |
Variable ; 1 : 1 to infinity : 1, 60dB maximum compression |
| Attack Time |
Variable program-dependent ; 3ms to 340ms for 15dB gain reduction |
| Release Rate |
Variable program-dependent ; 200dB/sec to 3dB/sec |
| Expander / Gate |
| Threshold Range |
Off to +15dBu |
| Expansion Ratio |
10 : 1 |
| Maximum Depth |
> 60dB |
| Attack Time |
< 500us (from maximum depth) |
| Release Time |
Adjustable, 30ms to 3sec (to 30dB attenuation) |
| PeakStop Limiter |
| Threshold Range |
0dBu to +20dBu |
| System Performance |
| Gain Adjustment Range |
variable ; -20dB to +20dB |
| Interchannel Crosstalk |
< -80dB, 20Hz to 20KHz |
| Dynamic Range |
> 115dB |
| Stereo Coupling |
True RMS power summing |
| Operating Temperature |
0°C to 45°C (32°F to 113°F) |
| Power Supply |
| Operating Voltage |
230VAC 50/60Hz |
| Power Consumption |
15 Watts |
| Physical |
| Dimension [HxWxD] |
1.75" x 19" x 6.75" (4.45 x 48.2 x 17.15 cm.) |
| Weight |
5.05 lbs. (2.29 kg.) |
| Shipping Weight |
7.20 lbs. (3.27 kg.) |
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
